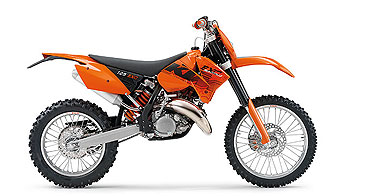

2006 KTM 125 EXC |
|
|
|
|
|
| |
|
From The Manufacturer: |
|
|
The advantage of the feather light 125 EXC is that it goes where even mountain goats refuse to climb. Light as a trial bike, it easily tackles the toughest slopes that nature can come up with. The newly coordinated chassis, together with the technology of the factory engine adds up to any amount of riding pleasure.
Engine single cylinder, 2-stroke
Displacement 124.8 cc
Bore / stroke 54 / 54.5 mm (2.13 / 2.15")
Compression ratio -
Starter kick-starter
Transmission 6 gears
Carburetor Keihin PWK 36 S AG
Control TVC power valve
Lubrication mixture oil lubrication
Transmission lubrication 0.7 l Motorex Top Speed 15W50
Engine lubrication -
Primary ratio 23 : 73
Final drive 14 : 42 (13 : 50)
Cooling liquid cooled
Clutch wet multi-disc clutch, operated hydraulically
Ignition Kokusan digital 2K-3
Frame central double-cradle-type 25 CrMo4
Subframe aluminum 7020
Handlebar Magura aluminium Ø 28/22 mm (1.10/0.87")
Front suspension WP-USD 48 mm (1.89")
Rear suspension WP-PDS shock absorber
Suspension travel front/rear 300 / 335 mm (11.81/13.19")
Front / Rear brakes disc brakes 260 / 220 mm (10.24/8.66")
Front / rear rims 1.60 x 21"; 2.15 x 18"
Front / rear tires 90/90-21"; 120/90-18"
Chain X-ring chain 5/8 x 1/4"
Main silencer aluminum
Steering head angle 63°
Wheelbase 1471±10 mm (57.91±0.39")
Ground clearance (unloaded) 390 mm (15.35")
Seat height 925 mm (36.42")
Fuel capacity approx. 8.5 litres (2.25 gal)
Weight (ready to race, no fuel) approx. 98.6 kg (217.4 lbs)
|
 |
|
|
|
|
|
|
| |
|
|
|
|
|
|
| |
|
