From The Manufacturer: |
|
|

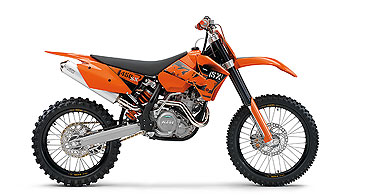

Which one of us wouldn’t gladly have a MX1-Racer in the garage? With the KTM 450 SX you are damn close to doing just that. It is the basis of our racing successes in the top class and with its agile handling and linear engine characteristics, it’s very convincing. Modern styling, noble details and high-quality components make it clear once more: the 450 SX is the one to win on.
Engine Type single cylinder, 4-stroke
Displacement 449.39 cc
Bore / stroke 95 / 63.4 mm (2.61 / 2.83")
Compression ratio 12 : 1
Starter kick starter
Transmission 4 gears
Carburetor Keihin MX FCR 41
Control 4 V / OHC with roller rocker lever
Lubrication pressure lubrication with 2 Eaton pumps
Transmission lubrication -
Engine oil 1,2l Motorex Power Synt 4T 10W-50
Primary ratio 33 : 76
Final drive 14 : 52
Cooling liquid cooled
Clutch wet multi-disc clutch, operated hydraulically
Ignition Kokusan digital 4K-3A
Frame central double-cradle-type 25 CrMo4
Subframe aluminum 7020
Handlebar Renthal Ø 28/22 mm (1.10/0.87")
Front suspension WP-USD Ø 48 mm (1.89")
Rear suspension WP-PDS shock absorber
Suspension travel front/rear 300 / 335 mm (11.81/13.19")
Front / rear brakes disc brakes 260 / 220 mm
Front / rear rims 1.60 x 21"; 2.15 x 19"
Front / rear tires 80/100-21"; 110/90-19"
Main silencer aluminum
Steering head angle 63.5°
Wheel caster 112 mm (4.41")
Wheelbase 1481±10 mm (58.31±0.39")
Ground clearance (unloaded) 380mm (15")
Seat height 925 mm (36.42")
Fuel capacity approx. 7 litres (1.85 gal)
Weight (ready to race, no fuel) approx. 105.2 kg (231.93 lbs)
M.S.R.P. $6,998.00 |
 |
|
|
| |
